TDP-225 Direct Thermal Label Printer

Name: TDP-225 Direct Thermal Label Printer
Brand: TSC
SKU: 51256
Availability: InStock

Tentative Shipping Date: 5 BUSINESS DAYS

$325.00 – $475.00

The TSC TDP-225 is a compact, durable, and reliable direct thermal label printer. Perfect for healthcare, retail, and asset tagging applications.

Standard configuration: 8MB SDRAM, 4MB Flash, RS-232, USB 2.0, MicroSD card slot for memory expansion.
Standard accessories: Windows labeling software CD, QIG, USB cable, Power cord, External universal switching powersupply.

Specifications

Print Method:	Direct Thermal
Resolution:	203dpi and 300dpi models avalailable
Print Width:	2.13″ and 1.89″ depending on model
Print Speed:	6ips and 4ips depending on model
Processor:	32-bit RISC CPU
Interfaces:	• RS-232 • USB 2.0 • Internal Ethernet, 10/100 Mbps (dealer option) • Bluetooth (user option)
Roll Size:	5″
Ribbon:	N/A
Control Panel:	1 feed button & 1 LED (3 colors: green, amber & red)
Brochure PDF:	TDP-225-Series_ENG_datasheet.pdf

High quality double-walled clamshell design
127 mm (5″) OD media capacity
Up to 152.4 mm (6″) per second print speed
Available in 203 dpi and 300 dpi resolutions
Easy media loading
Head open sensor
microSD Flash memory expansion up to 4 GB
Serial and USB 2.0 connectivity
Optional front LCD display, internal Ethernet, peel-off module, cutter module and stand-alone keyboard
ENERGY STAR® qualified
Cerner certified

Built with TSC durability, reliability and commitment to innovation, the 2-inch-format TDP-225 series direct thermal printer features a compact design and high performance engine that make it ideal for many healthcare, retail and asset tagging labeling applications.

The TDP-225 prints at 6 ips and is the first low-cost affordable compact 2-inch desktop printers to offer an optional LCD display for easy tracking of print job status. Other outstanding features include an inexpensive internal Ethernet adapter for easy integration into networks and an optional keyboard for printing labels in stand-alone or down-time situations. The TDP-324 is also available, featuring high resolution 300 dpi printing resolution and 4 ips print speed.

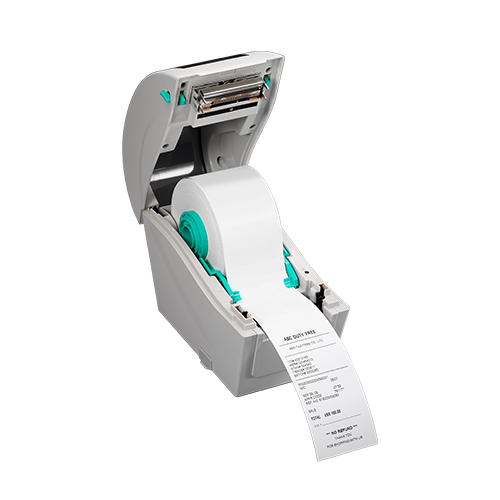

Designed with no losable parts, the compact TDP-225 series fits into tight spaces and supports a wide range of applications. It also features a user-friendly clamshell design that allows users to simply open the cover and drop labels into a spring-loaded 5-inch OD media bay. Top-of-form sensing by gap, black mark or notch is standard, and the black mark sensor is completely adjustable from side to side.

With enhanced electronics, the TDP-225 series offers a 200 MHz processor, standard memory of 4 MB Flash, 8 MB SDRAM and a microSD expansion slot that increases Flash storage up to 4 GB. The printer supports standard industry emulations, including the Eltron® and Zebra® languages.
