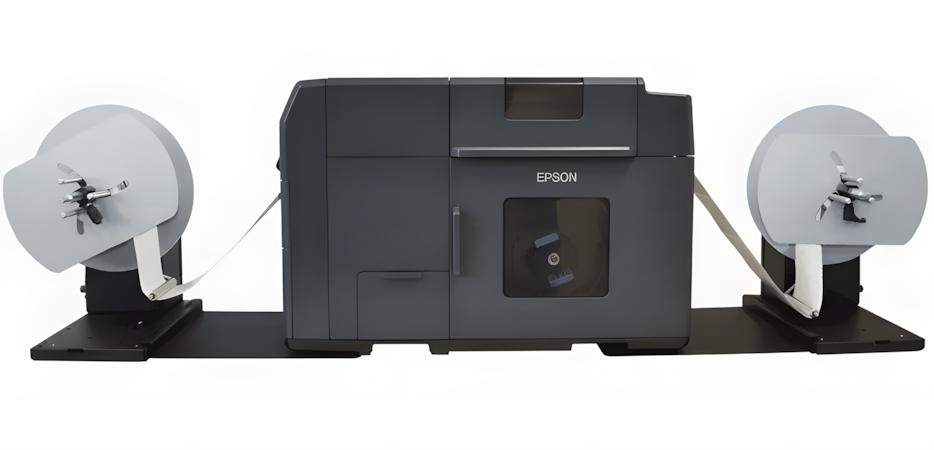

Roll to Roll System for Epson C7500 Printer

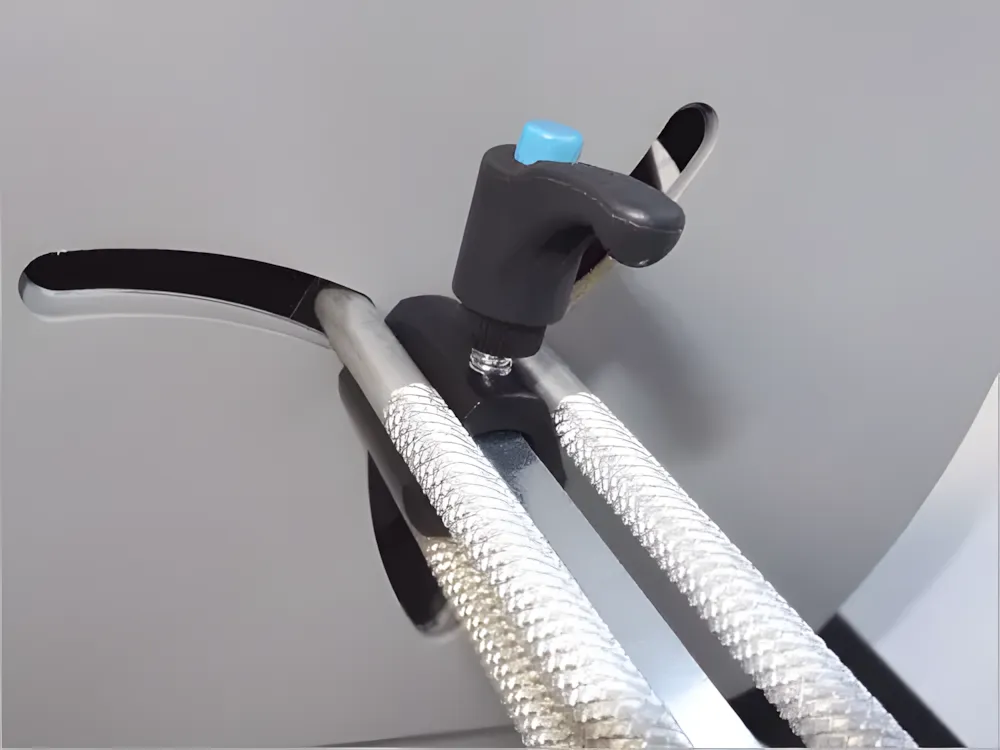

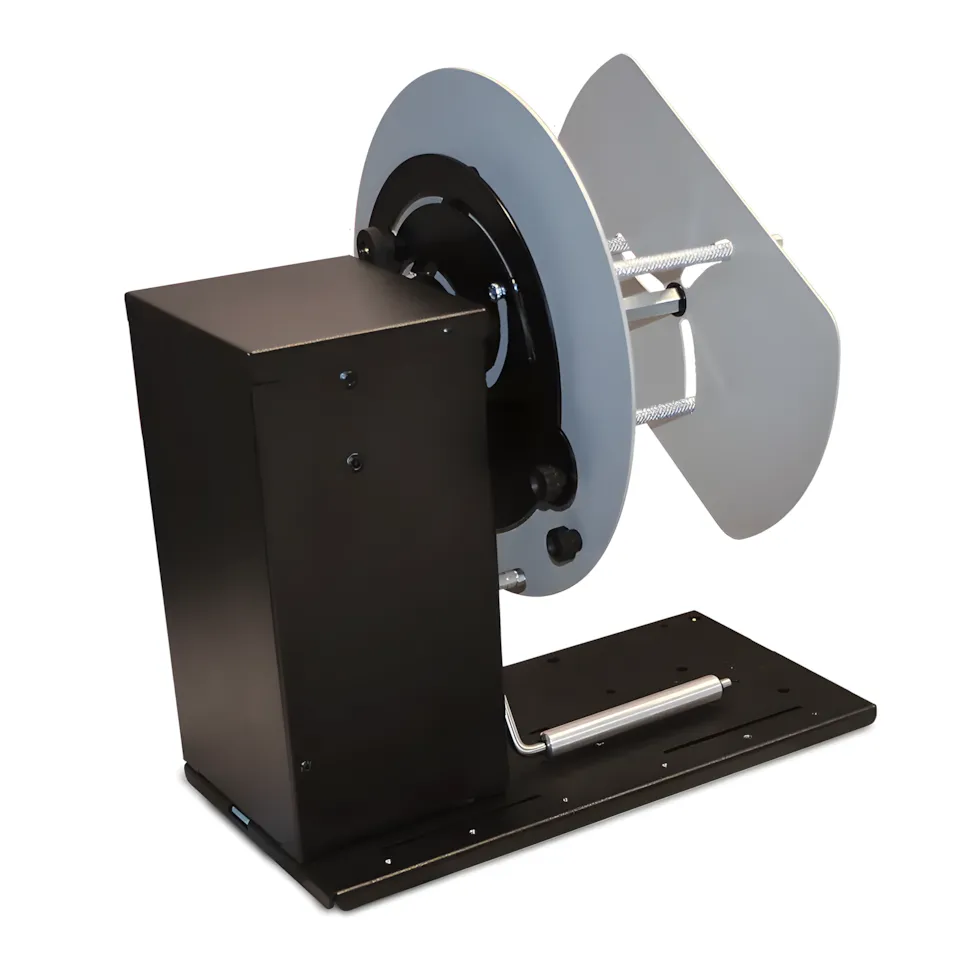

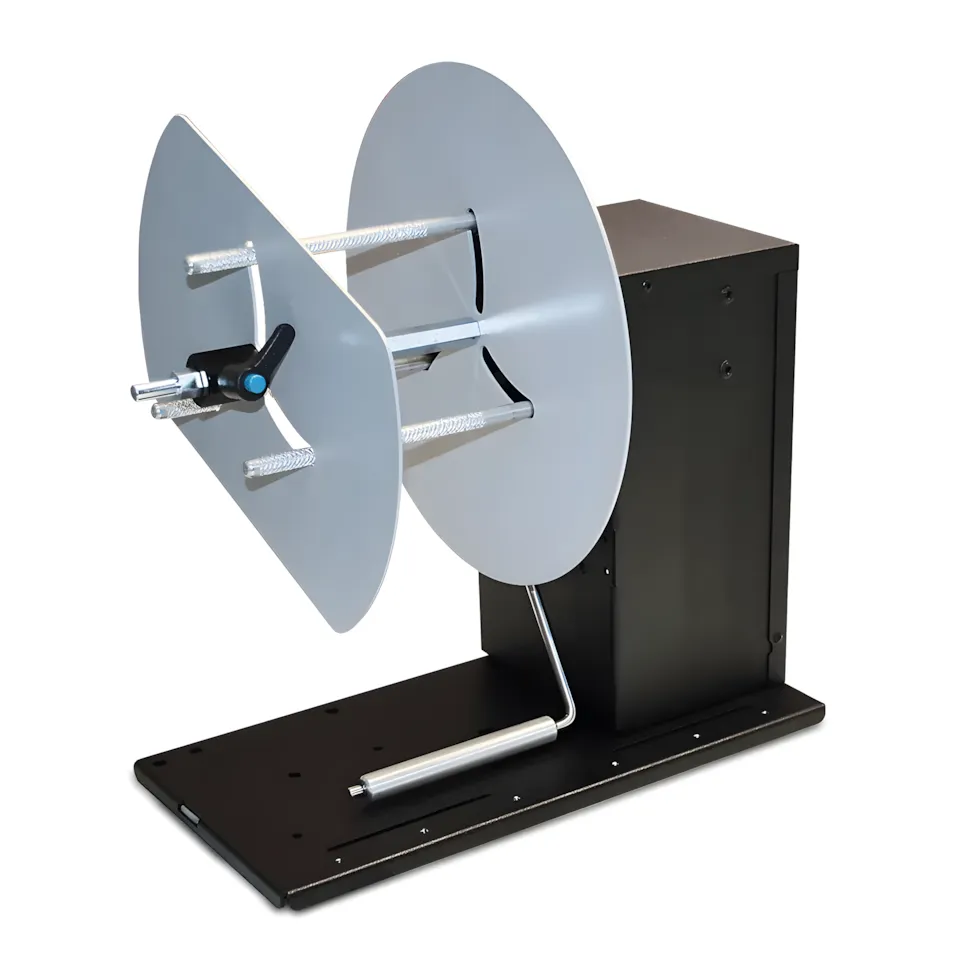

The rewinder and unwinder for Epson C7500 printer are used to manage rolls of media up to 5″ (127mm) having an outside diameter up to 10″ (250mm). Units are equipped with adjustable core holder 1.57″ (40mm) – 4.64″ (118mm).

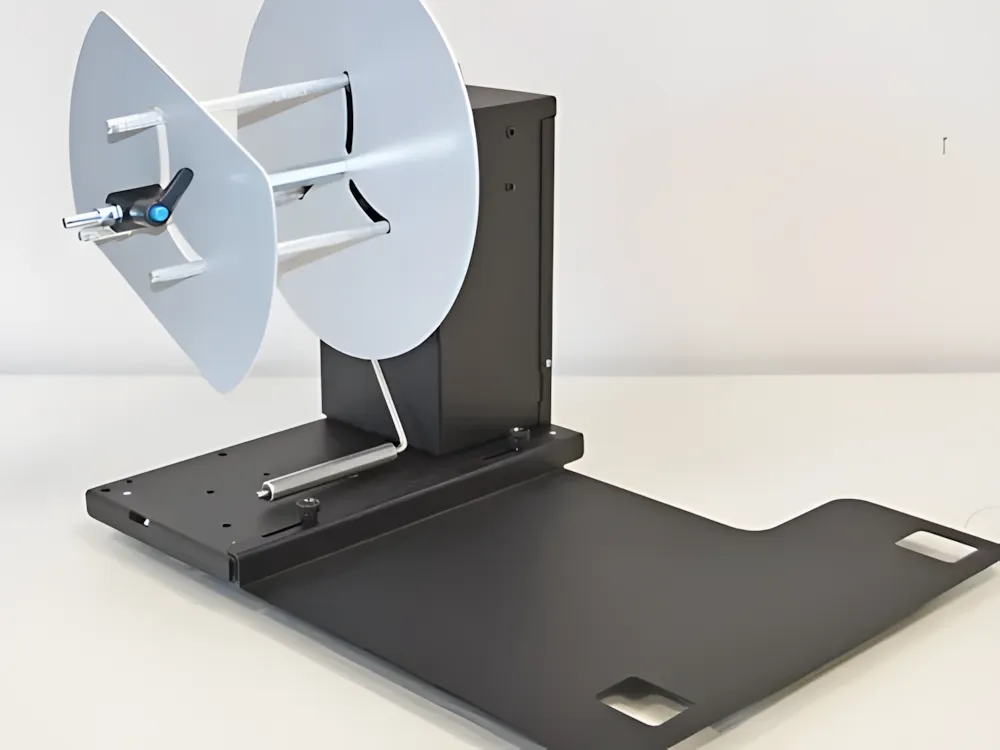

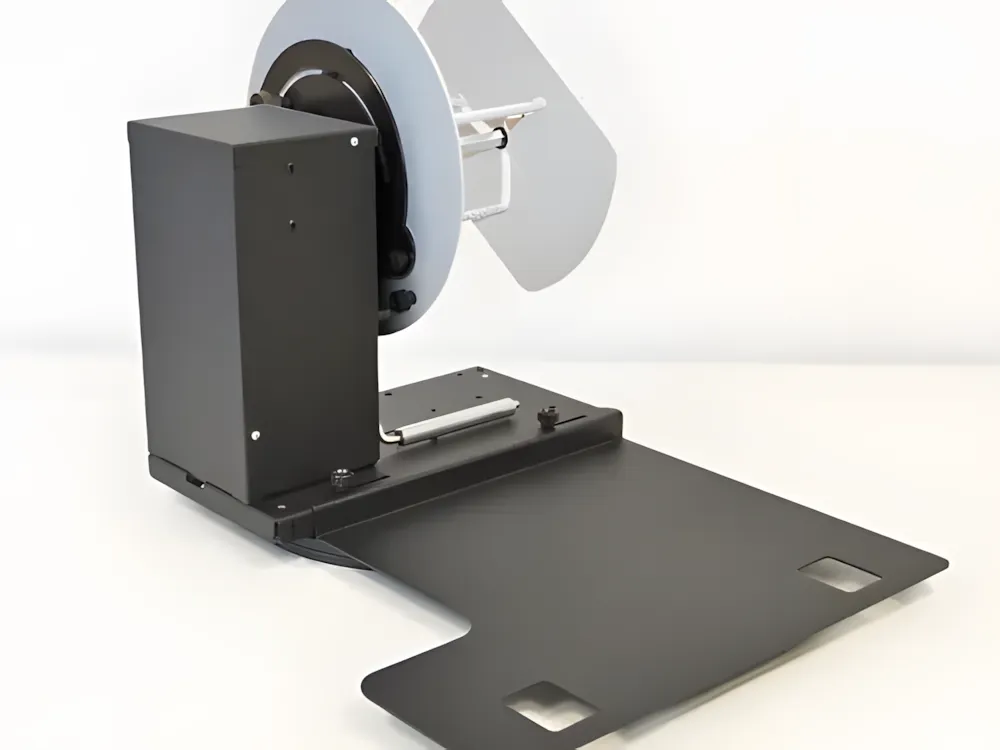

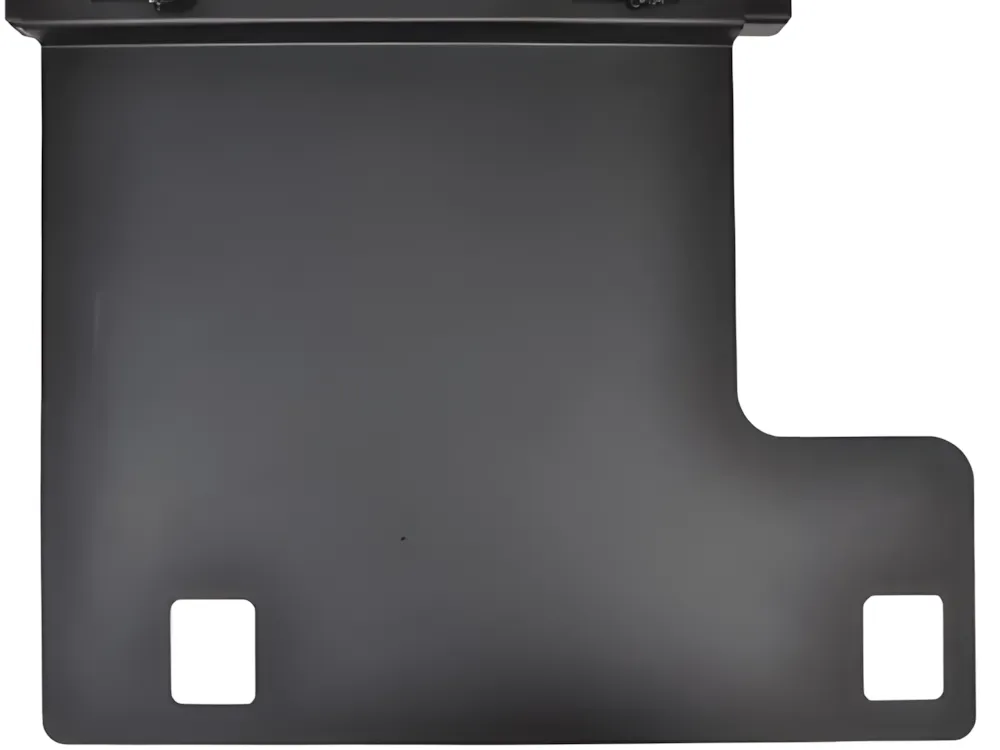

To guarantee an aligned media path in the system, it is available the junction plate to connect the rewinder and unwinder together. It offers also a customized sliding support where lean and fix the Epson printer.

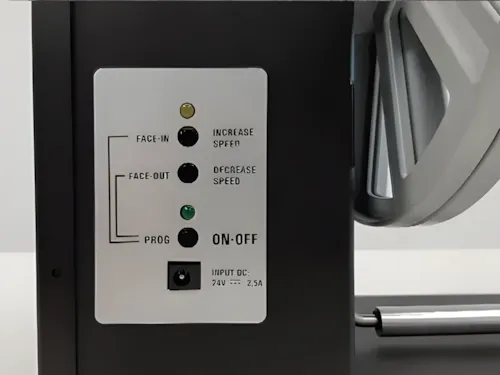

An external power supply 100/240VAC – 2.5A at 24V  allows an electronic circuit to provide, through the tension arm, the adjustment of the rotation’s speed and rotation’s direction. A 2A fuse is used as protection.
